Fin d'air de qualité du fournisseur chinois
1. Single-Stage Air Ends (Standard Efficiency)
The single-stage units are the workhorses of the industry, focusing on durability and cost-effectiveness. In these units, the air is compressed from intake pressure to discharge pressure in a single rotation cycle.
Key Design: Features a precision-machined male and female rotor set.
Performance: Optimized for standard industrial applications where space and initial cost are primary considerations.
Applications: General manufacturing, pneumatic tools, and textile industries.
Distinctive Feature: Known for a simplified structure that reduces maintenance complexity while maintaining Hanbell’s signature reliability.
2. Two-Stage Air Ends (High Efficiency)
Two-stage compression is the "premium" classification. Instead of one set of rotors, the air is compressed in two distinct steps, usually with inter-stage cooling.
Key Design: Two separate sets of rotors (Stages 1 and 2) integrated into a single housing.
Performance: By reducing the pressure ratio per stage, internal leakage is minimized, and volumetric efficiency increases. This typically results in 10%–15% energy savings compared to single-stage units.
Applications: Large-scale industrial plants, 24/7 operations, and energy-conscious facilities.
Distinctive Feature: "Yuzhen" specifically markets these as "World-Leading" core components, emphasizing their role as the high-end power core for Hanbell’s top-tier compressors.
Comparison Table: Yuzhen Air End Classification
| Feature | Single-Stage (Standard) | Two-Stage (High-Efficiency) |
| Energy Efficiency | Standard | Very High (IE3/IE4 equivalent) |
| Compression Ratio | High per stage | Low per stage (Optimized) |
| Heat Generation | Higher | Lower (via inter-cooling effect) |
| Initial Investment | Lower | Higher |
| Best For | Intermittent/General use | Constant/Heavy-duty use |
Technical Highlights of Yuzhen/Hanbell Manufacturing
Regardless of the classification, all Yuzhen air ends follow these manufacturing standards:
Rotor Profile: Utilization of Hanbell’s patented rotor profiles for maximum displacement.
Precision: Processed using world-class CNC grinding machines to ensure micron-level tolerances.
Versatility: Beyond standard air, these designs are often adapted for refrigerant compression, leveraging Hanbell's massive footprint in the HVAC industry.
Note: Yuzhen functions as the precision manufacturing arm, ensuring that the "heart" of the compressor—the air end—meets ISO standards for vibration and noise control.
- View as

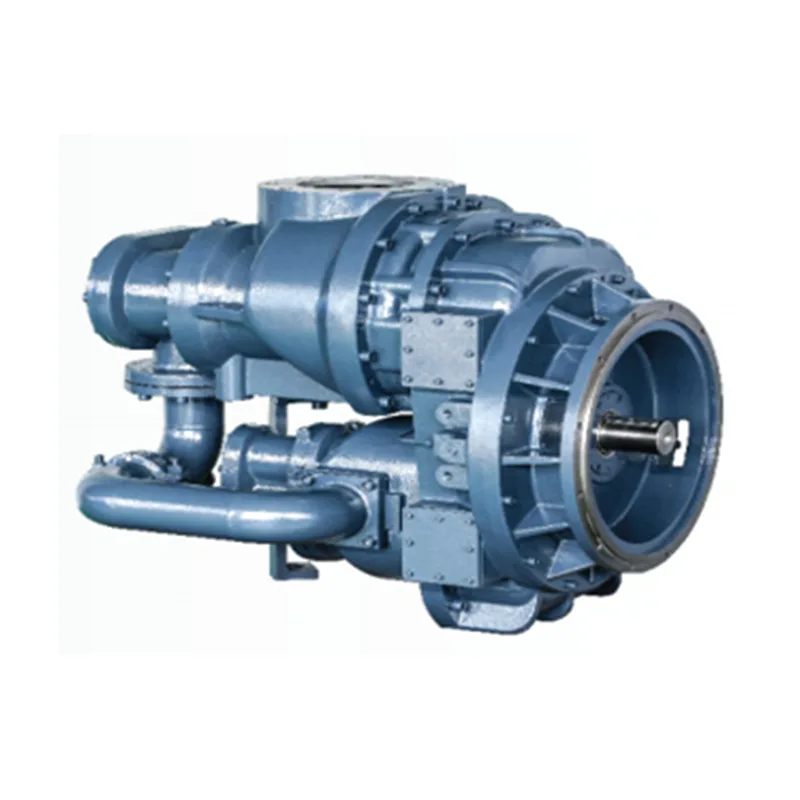

Air End à deux étages
HANBELL fournit Yuzhen, un fabricant leader mondial de composants de base pour les équipements Air End à deux étages. HANBELL se spécialise dans la recherche, le développement et la production de têtes de compresseur d'air hautes performances, fournissant des noyaux de puissance efficaces et fiables pour diverses industries grâce à des processus de fabrication précis et une innovation technologique continue.

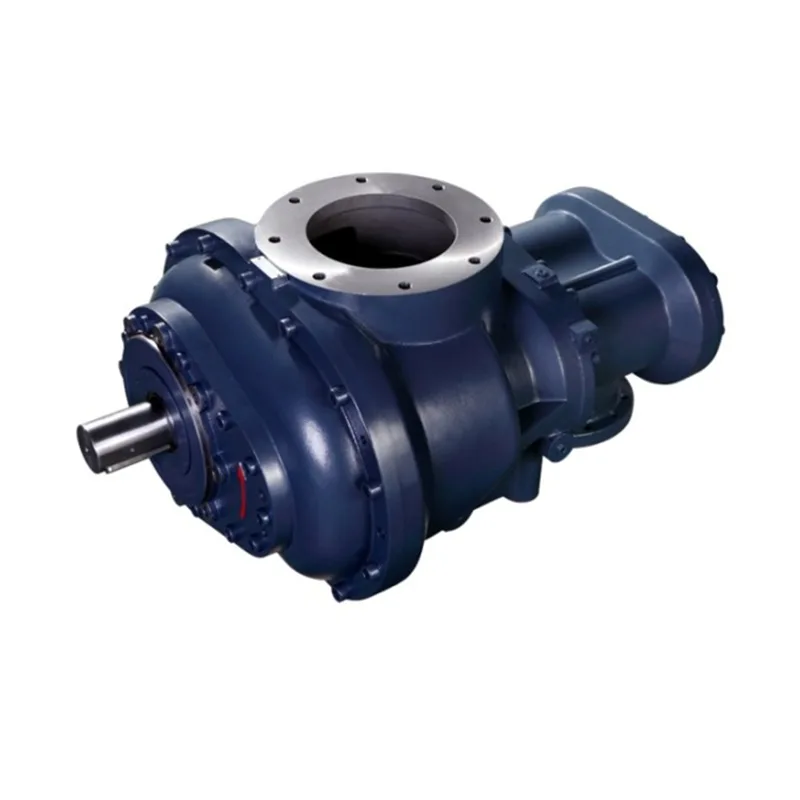

Air End à un étage
L'extrémité pneumatique à un étage Yuzhen est conçue pour offrir un rendement élevé, une durabilité et des performances fiables dans les compresseurs à vis industriels. Produit avec des machines de traitement de précision avancées et testé rigoureusement, il garantit un fonctionnement stable dans diverses conditions de travail. Ces blocs d'air sont largement utilisés dans les domaines des réfrigérants et de la compression d'air, constituant le cœur des compresseurs à vis Hanbell connus pour leurs performances supérieures et leur fiabilité à long terme.
Yuzhen est un fabricant et fournisseur professionnel Fin d'air en Chine. Vous pouvez vendre en gros des produits de haute qualité de notre usine. Bienvenue pour passer une commande.
